उत्पाद विवरण:
|
| प्रोडक्ट का नाम: | इलेक्ट्रोडायनामिक शेकर सिस्टम | मैक्स साइन फोर्स: | 3केएन |
|---|---|---|---|
| अधिकतम विस्थापन: | 40एमएमपी-पी | अधिकतम। त्वरण: | 100 ग्राम |
| अधिकतम। वेग: | 200 सेमी/से | अधिकतम भार: | 120 किलो |
| आवृति सीमा: | 2-2500Hz | ||
| प्रमुखता देना: | electrodynamic vibration test system,vibration test system with slip table,horizontal vertical vibration testing system |
||

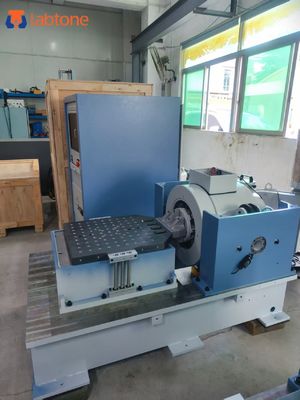

Electrodynamic Shaker System For Vibration Testing Provide Slip Table For Horizontal Vibration
Features:
Specifications: EV203-EV232
| Model | EV203 | EV206 | EV210 | EV220 | EV232 |
| Vibration Generator | VG300/40 | VG600/50 | VG1000/50 | VG2000/50 | VG3200/50 |
| Frequency(Hz) | 2-2500 | 2-3000 | 2-3000 | 2-2500 | 2-2500 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 | 3200 |
| Max. Displacement (mmp-p) | 40 | 50.8 | 50.8 | 50.8 | 50.8 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 200 | 200 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 300 | 400 | 500 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 | 30 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 | φ400 |
| Cooling Method | Forced Air Cooling | ||||
| Shaker Weight(kg) | 480 | 920 | 1200 | 1600 | 2000 |
| Shaker Dimension L*W*H(MM) | 800*565*670 | 890*750*850 | 890*750*850 | 1200*870*1100 | 1400*900*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k | Amp35k |
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 | 550 |
| Power Amplifier Dimension L*W*H(MM) | 880*590*1125 | 880*590*1275 | 880*590*1275 | 880*590*1275 | 800*550*1920 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | ||||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 | 45 |
Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Optoelectronics, Instrument etc.
Our Services
Pre-Sales Service
1)Technical consultation: test method, laboratory planning and suggestion.
2)Equipment selection: selection scheme, FAQ.
3)Product testing scheme.
4)Customer communication and progress report.
After-Sales Service
1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
3)Technical support: special paid services are provided according to customer’s needs.
Details
