उत्पाद विवरण:
|
| साइन फोर्स: | 50 किग्रा.एफ(500एन) | यादृच्छिक बल: | 38किग्रा.एफ(380N) |
|---|---|---|---|
| विस्थापन: | 10 मिमी | अधिकतम त्वरण: | 37 ग्रा |
| प्रभावी भार: | 10 किग्रा | अधिकतम वेग: | 1.2 मी/से |
| नाम: | परिवहन सिमुलेशन रैंडम कंपन परीक्षण के लिए छोटी कंपन परीक्षण मशीन | ||
| प्रमुखता देना: | vibration table test equipment,vibration exciter for scientific research,small test item vibration system |
||

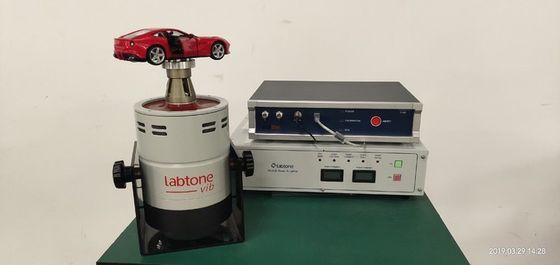

Vibration Test Equipment Vibration Exciter for Scientific Research, Small Test Item
Minitype Vibration Test System
With light weight, small volume, convenient to move,ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.
Features:
Composition:
Compose of vibration generator, power amplifier, vibration controller, signal generator, acceleration sensor

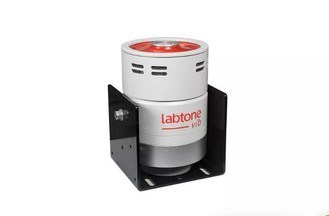

| EV50 electrodynamic shaker | |
| Max. sine exciting force | 50Kg.f peak (500N) |
| Max. random exciting force | 38Kg.f r.ms (380N) |
| Frequency range | 2～3800Hz |
| Max. displacement | 10 mm p-p |
| Max. velocity | 1.2m/s |
| Max. acceleration | 37G (380 m/s2) |
| Effective load | 10kg |
| Vibration isolation frequency | 2.5 Hz |
| Diameter of armature | Ф170 mm |
| Mass of armature | 1.2kg |
| Shaker dimensions | DIA 270 * H195mm |
| Weight | About 45Kg |
| VA-ST-05 Analog power amplifier | |
| Output power | 800va |
| Output voltage | 38VRMS |
| Amplifier cabinet dimension | 430mm×200mm×500mm |
| Servo protection system | |
| Functions: | FUSE, OSC ZERO, OVER DISP, OVER VILTAGE, OVER CURRENT, OVER HEAT, EXT-TRIP, EXT-STOP |
| vibration controller | |
| Hardware configuration: | 2-channel inputs, 1-channel outputs |
| Control computer | Acer |
| Function |
1,Sine Control 2,Ramdom Control
Language:English,Chinese |
| Operating system | Microsoft Windows 7/8/10 |
| Acceleration sensor LAB |
Frequency range:1—12KHz Sensitivity: 30 ±10 pC/g Temperature range: -40℃ to 160℃ |
| BL-120 cooling blower (including silencer) | |
| Cooling method | Air cooling |
| Blower power | 200W |
| Electrical requirements: | |
| Power supply | AC 220V ±10%, 50Hz |
| Ground resistance | ≤4Ω |
Presales:
In-Sales:
.
Detailed Pictures
