उत्पाद विवरण:
|
| साइन फोर्स:: | 2400 किग्रा.एफ(24kN) | शॉक फोर्स:: | 4400Kg.f शिखर (44KN) |
|---|---|---|---|
| यादृच्छिक बल:: | 2200 किग्रा.एफ आरएमएस (22KN) | अधिकतम वेग:: | 2.0M/S |
| विस्थापन:: | 51 मिमी | पेलोड:: | 400 किलो |
| प्रमुखता से दिखाना:: | 3चरण कंपन परीक्षण उपकरण, इलेक्ट्रो-डायनामिक कंपन परीक्षण प्रणाली, UL2580 के लिए कंपन परीक्षण प्रणाली | ||
| प्रमुखता देना: | ISTA vibration test system for EV batteries,UL2580 compliant vibration test system,random vibration test system for battery packs |
||

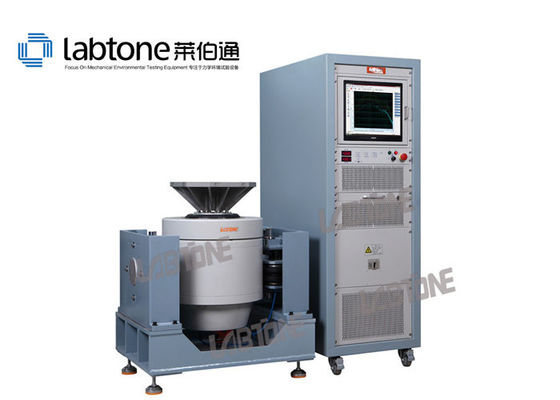

Vibration Test System Description
A complete set of vibration testing system is composed of the shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection
| Item | Configuration | Qty. |
| A | Vibration shaker | |
| A11S24 shaker ((including Pneumatic Centering Controller) | 1 set | |
| B402S blower (including silencer and Duct ) | 1 set | |
| Horizontal slip table HG50M | 1 set | |
| Head Expander VT50CM | 1 set | |
| B | Power Amplifier | |
| LA10K power amplifier(including Field power supply) | 1 set | |
| C. |
Vibration Controller-Vcs-2 (Including Hardware and Control Functions Program software CDS |
|
| Accelerometer (Including Length 7m low noise BNC-M5 cable) | 1 set | |
| Computer(Including keyboard, mouse and monitor) | 0 set | |
| D |
Documentation Operation Manual, Test Report, Packing List |
1 set |
| E | Accessories | |
| Maintenance Tools | 1 set | |
| Standard Spare Parts | 1 set |
Features
| Shaker Specifications A20S34 | |
| Peak Sine (Pk) | 2400Kg.f peak (24KN) |
| Random (RMS) | 2200Kg.f rms (22KN) @ISO5344 |
| Shock (Pk) | 4400Kg.f peak (44KN) @6ms |
| Usable Frequency | DC～3000Hz |
| Maximum Displacement (p-p) | 51mm (2inch) |
| Max. velocity | 2m/s |
| Max. acceleration | Sine:100g (980 m/s2)；Random: 60g (588 m/s2) |
| Vertical Load Support | 300 kg |
|
Body Suspension Natural Frequency (Thrust Axis) |
Less than 2.5 Hz |
| Armature Diameter | Ф340 mm |
| Armature Weight | About 24kg |
|
Fundamental Resonance Frequency (Bare table) |
2,600 Hz (nom.) +/- 5% |
|
Load Attachment Points (Standard) |
21stainless steel M10 Inserts |
| Stray Flux Density | ＜10gauss |
| Allowable partial force | 500.N.M |
| Shaker dimensions | 1190mmL×860mmD×1060mmH |
| Weight of Shaker | About 1900Kg |
| Power Amplifier Specifications LA20KL | |
| Rated Output Capacity | 22KVA |
| Signal to Noise Ratio | Greater than 65 dB |
| Amplifier Efficiency | Greater than 90% |
| Amplifier Overall Dimensions | 650mmL×920mmD×1780mmH |
Size(mm): 300 x 300-1500x1500
Material: Aluminium /Magnesium
The expansion platform is made of magnesium alloy to provide expansion for the armature. With Reasonable and scientific design, the platform can achieve a testing frequency of 2 kHz. Specific microstructure provides reasonable vibration damping, and minimizes the amplification factor of high frequency resonance.
Material: Aluminium /Magnesium
According to the customer's actual demand, we can offer different shapes of fixture, such as three-dimensional square,L, and T shape.
* Technical consultation: test method, laboratory planning and suggestion.
* Equipment selection: selection scheme, FAQ.
* View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

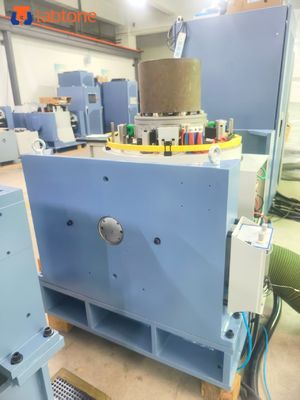

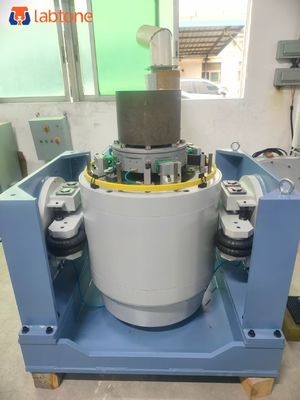

Picture details:
