उत्पाद विवरण:
|
| तालिका आकार: | 1000*1000 मिमी | पेलोड: | 500 किलो |
|---|---|---|---|
| तरंग रूप: | हाफ साइन पल्स | त्वरण सीमा: | 5-80 ग्राम |
| नाड़ी की अवधि: | 6-18ms | बुमो पुनरावृत्ति आवृत्ति: | 1-80 |
| ड्रॉप ऊंचाई सीमा: | 5-180मिमी | अधिकतम वेग भिन्नता: | 2.8एम/एस |
| प्रमुखता देना: | Half Sine Pulse Bump Test Machine,High Frequency Bump Test Machine,Wide Payload Bump Test Machine |
||

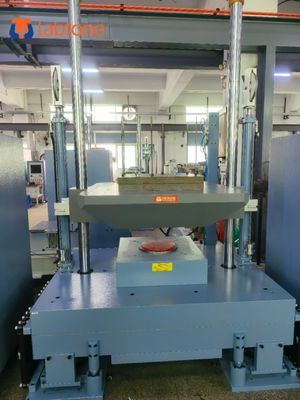

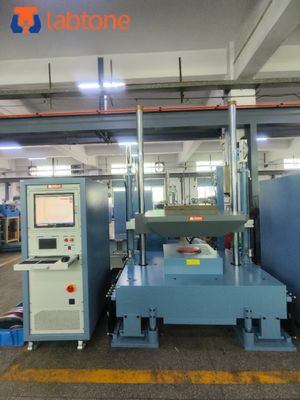

Bump Shock Test Machine For A Wide Range of Half Sine Test With DEF STD 07-55 Standard
Excellent Durability Repetitive Mechanical Bump Testing Equipment Speicifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Wave form | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Pluse duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*880 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipment
and other electronic electrician products during transport or using which may be subjected to repeated shocks.
Bump testing machines can also be used to ensure a specimen reaches a satisfying design in structure, or as a means of quality control.
The test based on the specimen undergoing the standard pulse repeat shocking which is specified peak acceleration and duration.
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
