उत्पाद विवरण:
|
| मैक्स साइन फोर्स:: | 1100kg.f | अधिकतम। विस्थापन: | 51 मिमी |
|---|---|---|---|
| त्वरण:: | 100 ग्राम | पेलोड:: | 300 किलो |
| अधिकतम वेग:: | 2M/s | आवृत्ति:: | 1 ~ 3300Hz |
| आर्मेचर व्यास:: | 240 मिमी | आर्मेचर मास:: | 11 किलो |
| प्रमुखता से दिखाना:: | कंपन परीक्षण मशीन साइन बल बैटरी, 100g त्वरण कंपन परीक्षण मशीन, 100g त्वरण कंपन परीक्षण मशीन | ||
| प्रमुखता देना: | 1100kg vibration test machine,sine force electrodynamic shaker,battery vibration test equipment |
||
Product Introduction

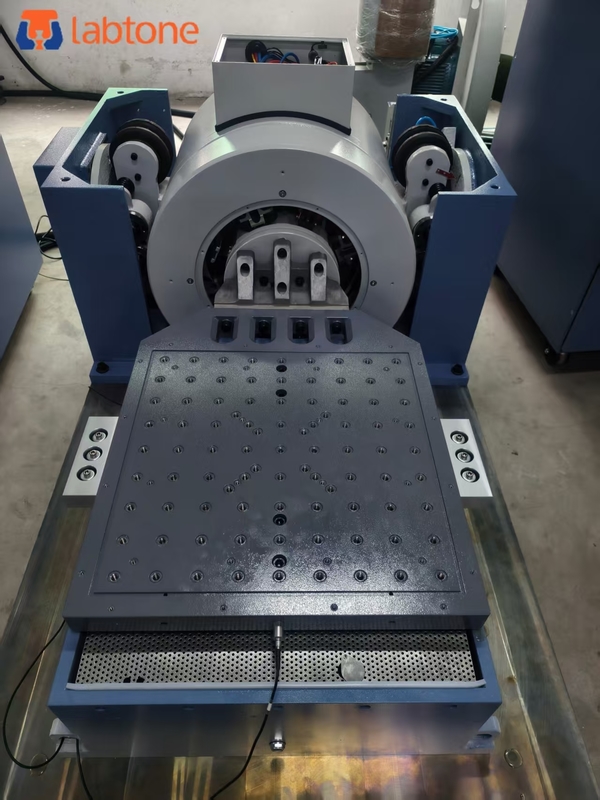

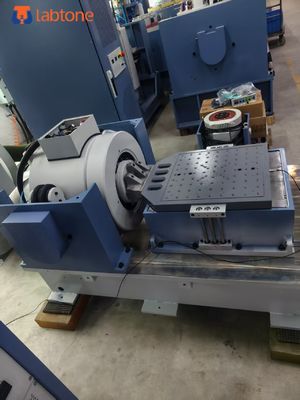

Labtone EV series of electrodynamic shaker vibration test system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications.
It simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.
Labtone EV series of electrodynamic vibration testing system is specially designed to meet the need for long time operation. Vertical and horizontal vibrations can be achieved by the installation of vibration resistant base. The standard platform is equipped with high efficiency airbag shock isolation device, so that the vibration transmitted to the building can be minimized. There is no need for additional foundation is most of the cases.

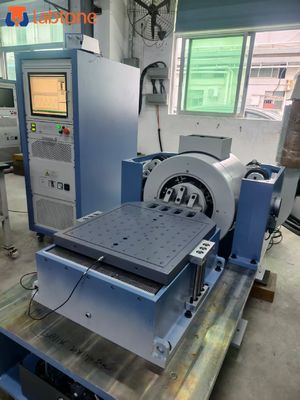

A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection.
Features
Specifications
| Model | EV211 |
| Max Sine Force (kg.f) | 1100 |
| Frequency Range (Hz) | 1~3300 |
| Max Displacement (mmp-p) | 51 |
| Max Acceleration (g) | 100 |
| Max Velocity (m/s) | 2 |
| Max Load (kg) | 300 |
| Armature Weight (kg) | 11 |
| Armature Diameter (mm) | 240 |
|
Shaker Dimensions L*W*H (mm) |
915*740*780 |
| Shaker Weight (kg) | 890 |
