उत्पाद विवरण:
|
| तालिका का आकार:: | 800*800 मिमी | अधिकतम पेलोड ::: | 200 किलो |
|---|---|---|---|
| वेव फॉर्म:: | आधा साइन पल्स | त्वरण सीमाः: | 5-100 जी |
| नाड़ी अवधि:: | 6~18ms | अधिकतम वेग भिन्नता: | 2.6 मी/से |
| मशीन आयाम (मिमी): | 900*960*800 | मशीन वजन: | 2160 |
| मानकों: | GB/T2423.4, GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 आदि | प्रमुखता से दिखाना:: | बार -बार प्रभाव परीक्षण बम्प मशीन, बार -बार प्रभाव बम्प टेस्ट मशीन, इलेक्ट्रॉनिक बम्प टेस्ट मशीन |
| प्रमुखता देना: | SKM800 bump test machine,electronic component bump tester,repeated bump testing machine |
||

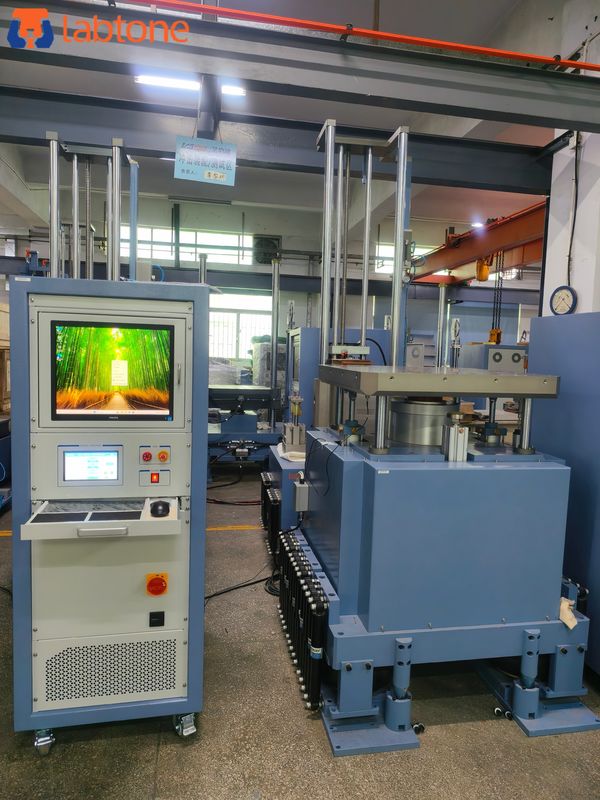

Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipmentand other electronic electrician products during transport or using which may be subjected to repeated shocks.
SKM500 provides high quality shock pulse capability with the added benefit of a must faster cycle time up to 120 shock impacts per minute. SKM500 Shock Test System can generate high energy impacts with velocity changes up to 6.8m/s.
Excellent Durability Repetitive Mechanical Bump Testing Equipment Speicifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Wave form | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Pluse duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*880 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
Customer Services
Presales:
In-Sales:
After-Sales:
