उत्पाद विवरण:
|
| तालिका आकार: | 50*60 (सेमी) | Max. अधिकतम. specimen weight नमूना वजन: | 50 किलोग्राम |
|---|---|---|---|
| अधिकतम। त्वरण: | आधा साइन: 600G | मशीन आयाम: | 130*140*260 (सेमी) |
| नियंत्रक कैबिनेट आयाम: | W55*D50*H80 (सेमी) | मशीन वजन: | 2300 (किग्रा) |
| प्रमुखता देना: | Shock test system with energy exchange,Durability shock test system,Product resistance shock tester |
||

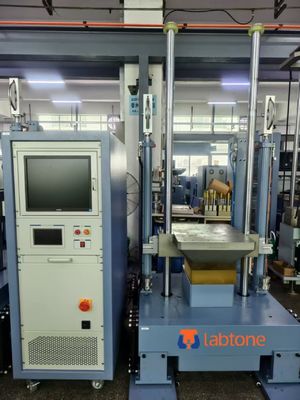

50kg Payload Shock Testing Machine For Product Reliability Testing With IEC standard
Shock testing systems Specifications
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | |
| Table size (cm) | 40*40 | 50*60 | 70*80 | 100*100 | 120*120 | 150*150 | 200*200 | |
| Maximum Specimen Weight(Kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | |
| Max acceleration(G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 150 | 150 | 150 | 150 | 100 | 100 | 100 | |
| Pulse Duration (ms) | half sine | 40—0.2 | 40~1 | 40~1 | 30~2 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | ||
| Machine Dimension(cm) | 120*110*245 | 130*140*260 | 130*120*260 | 150*130*260 | 200*160*300 | 230*180*310 | 250*220*310 | |
| Controller cabinet Dimension(cm) | W55*D50*H80 | |||||||
| Machine Weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 19500 | |
| Utility | 3-phase AC380V 50/60Hz 0.5~0.8MPa | |||||||
| Requirements | ||||||||
| Conforming standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | |||||||
Applications
· Fragility test of products.
· Shock standard test of products.
· Fragility test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts, large-sized office machine, refrigerator and etc.
· Shock standard test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts large-sized office machine, refrigerator and etc.
· Free drop equivalent test packaged freights.
Product Option Highlights
