उत्पाद विवरण:
|
| नमूना: | एचएसकेटी10 | तालिका आकार: | 2000x2500 मिमी |
|---|---|---|---|
| नमूना अधिकतम वजन (किग्रा): | 10 | सदमा नाड़ी: | आधा साइन |
| त्वरण सीमा (m/s2): | 20----1500जी | पल्स अवधि सीमा (एमएस): | 0.5~18 |
| शक्ति: | इलेक्ट्रॉनिक | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | Mechanical shock test system with large table,Shock test system for high impact loads,2000x2500mm shock test table with warranty |
||

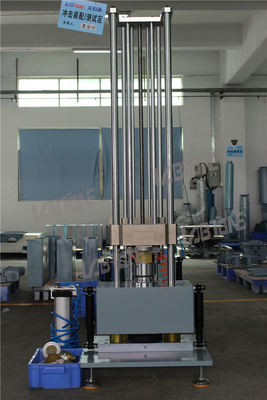

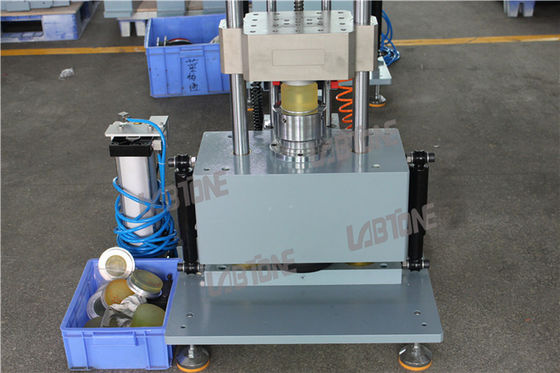

Mechanical Shock Test SystemWith 20x25cm Table for 1500g@0.5ms 150g@6ms 30G@18ms
The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.
Product Features
Shock testing systems Specifications
| Model | HSKT10 | HSKT10D |
| Table size (mm) | 200 x200 | 210 x 210 |
| Specimen max weight(kg) | 10 | 10 |
| Shock pulse | Half-sine | |
| Acceleration range (m/s2) | 20----1500 | 20----10000 |
| Pulse duration range (ms) | 0.5~11 | 0.2~11 |
| Seismic base | Pneumatic springs device | |
| Utility reqyurements | AC220V 50Hz 5A Air pressure:more than 0.5Mpa | |
