उत्पाद विवरण:
|
| प्रोडक्ट का नाम: | बड़ा साइन बल कंपन परीक्षक | अधिकतम निकास बल: | 2200 कि.ग्रा.एफ |
|---|---|---|---|
| आवृति सीमा: | 1-3000 हर्ट्ज | अधिकतम। विस्थापन: | 51 मिमी |
| अधिकतम। वेग: | 200 सेमी/से | पेलोड: | 400 किलोग्राम |
| बिजली की आपूर्ति: | एसी 3-चरण 380V / 50Hz | अधिकतम त्वरण: | 100 ग्राम |
| प्रमुखता देना: | 400kg payload vibration testing table,320mm armature vibration testing equipment,component vibration table testing equipment |
||

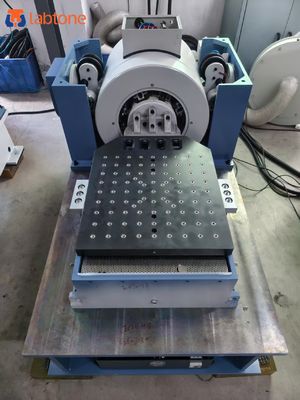

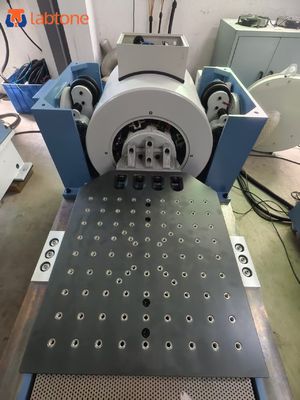

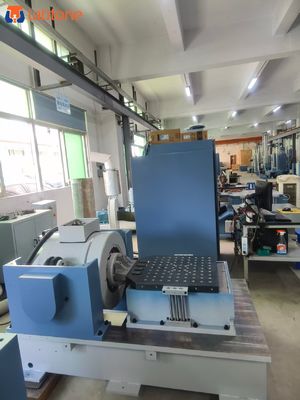

Vertical Vibration Test Equipment Meet JESD 22-B103B For Components
Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries: Automotive, Electronics, Aviation, Vessel, Telecommunication, Military Industry, Measuring Instrument etc.
Specifications: EV203-EV220
| Model | EV203 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 1-3000 | 1-3000 | 1-3000 | 1-3000 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 |
| Max. Displacement (mmp-p) | 40 | 51 | 51 | 51 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 200 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||
| Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
Features
