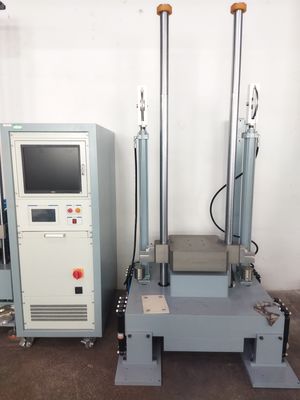

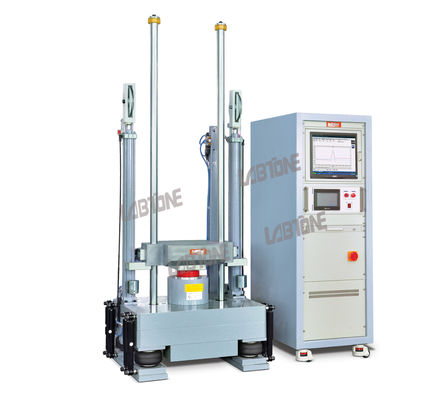

उत्पाद विवरण:
|
| नमूना:: | SKT500 | तालिका का आकार:: | 120*120 सेमी |
|---|---|---|---|
| नमूना अधिकतम वजन (किग्रा):: | 500 किलो | अधिकतम। त्वरण (जी):: | 500 ग्राम |
| पल्स अवधि रेंज (एमएस):: | 3~20ms | मशीन वजन:: | 8500 किग्रा |
| प्रमुखता से दिखाना:: | आधा साइनसोइडल वेव शॉक टेस्टिंग सिस्टम, 500 ग्राम त्वरण शॉक टेस्टिंग सिस्टम, शॉक टेस्ट सिस्टम 500 ग्र | ||
| प्रमुखता देना: | 500g shock test system,half sinusoidal wave shock tester,500kg payload shock testing system |
||
Features
Specifications
| Model | SKT50 | SKT100 | SKT200 | SKT300 | SKT500 | SKT1000 | SKT1500 | |
| Table size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | |
| Maximum Specimen Weight(Kg) | 50 | 100 | 200 | 300 | 500 | 1000 | 1500 | |
| Max acceleration(G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 100 | 100 | 100 | 60 | 50 | 50 | 50 | |
| Pulse Duration (ms) | half sine | 30~1 | 30~2 | 30~2 | 20~3 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | |
| Machine Dimension(cm) | 82x90x195 | 120x105x245 | 130x120x260 | 150x130x260 | 200x160x300 | 230x180x310 | 250x250x310 | |
| Controller cabinet Dimension(cm) | W55 x D50 x H80 | |||||||
| Machine Weight(Kg) | 1050 | 2000 | 3200 | 4200 | 8500 | 15500 | 21500 | |
| Power supply | 3-phase AC380V 50/60Hz 0.5~0.8MPa | |||||||
| Conforming standards |
GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL |
|||||||
FAQ
1. Peak acceleration and pulse duration can perform?
5g 30ms; 15g 11ms; 30g 18ms; 50g 6ms; 50g 11ms; 50g 3ms; 100g 6ms; 200g 6ms; 200g 3ms; 500g 1ms etc.
2. How do you control shakers?
If we're looking for resonances in the product we're testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies. But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously. Control commands go into the keyboard of a specially programmed computer.
3. The purpose of test?
